Elegant and Secure Facial Authentication Terminal

Experience the pinnacle of security with our BioNIC Xtreme FX facial recognition system, combining industrial-grade IP65 durability and AI-driven liveness detection for fail-safe time tracking.

BioNIC Xtreme FX Face Recognition Attendance System

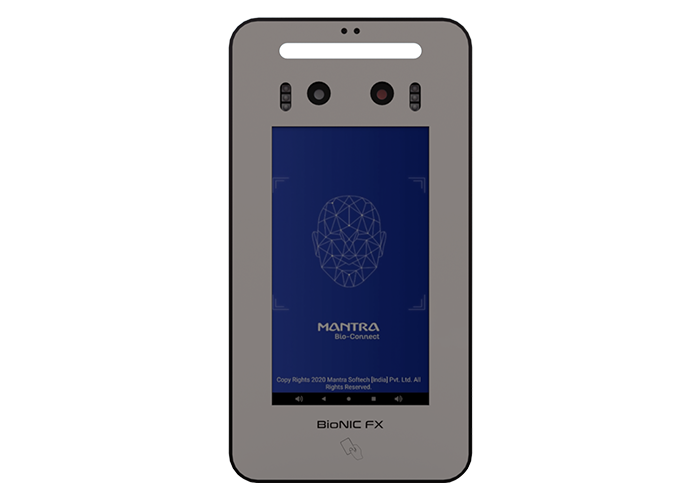

BioNIC Xtreme FX Main View

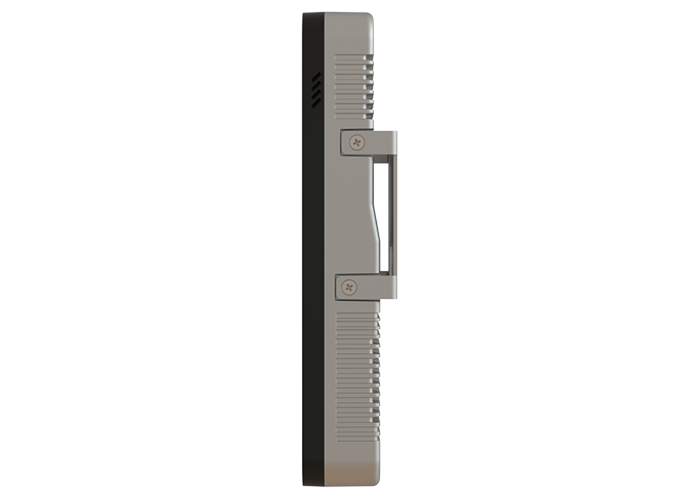

BioNIC Xtreme FX Side View

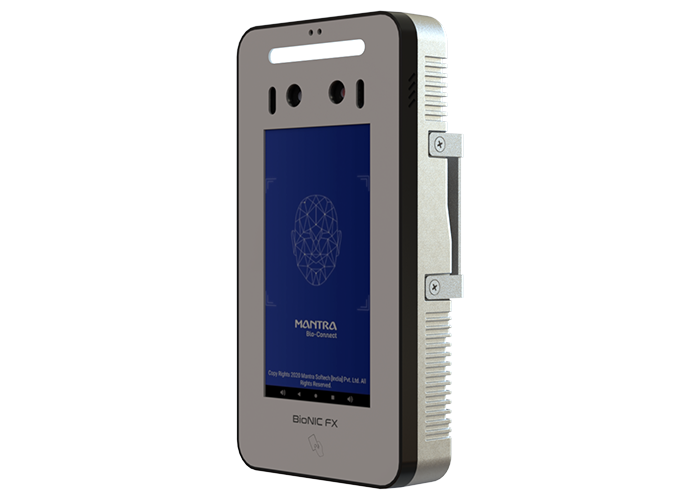

BioNIC Xtreme FX Angled View

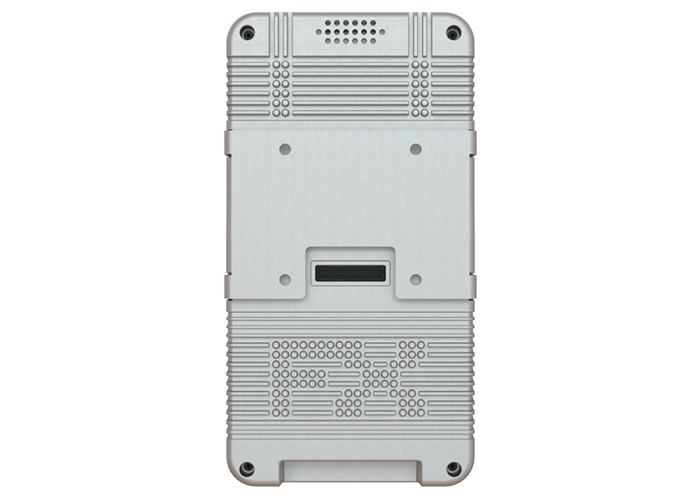

BioNIC Xtreme FX Back View
BioNIC Xtreme FX Interface
BioNIC Xtreme FX Mounting
Industrial Biometric Terminal

BioNIC Xtreme FX High-Performance Face Recognition

The BioNIC Xtreme FX is an elite biometric terminal designed for enterprises that demand uncompromised security and speed. Utilizing a high-performance 2.2GHz Quad-core processor and an Android 8.1 OS, this hardware identifies users in under 0.3 seconds, even in high-traffic environments. With its IP65-rated chassis, it offers complete protection against water and dust, making it the ideal solution for both clean corporate offices and rugged industrial sites.
1 Year Warranty
9 - 5 Support
Free Installation

Product Description

The BioNIC Xtreme FX is specifically engineered to handle the complexities of modern workforce management by offering a completely touchless, hygienic authentication experience. By leveraging powerful facial recognition AI, this unit eliminates the need for physical contact, making it a vital asset for hospitals, manufacturing plants, and high-security offices where health and safety are top priorities.

The internal architecture is optimized for performance in challenging lighting conditions. Equipped with a Dual RGB and Near-Infrared camera system, the terminal maintains 99.9% scanning accuracy in environments ranging from pitch-black corridors to bright, sunlit entryways. This ensures that the hardware performs with consistent reliability regardless of where it is mounted.

Housed in a rugged yet sleek IP65-rated chassis, the BioNIC Xtreme FX complements the aesthetics of any workspace while providing industrial-grade durability. The 5-inch high-resolution touch interface is powered by Android, offering an intuitive user experience that allows employees to verify their presence with zero learning curve. This user-centric design minimizes entrance bottlenecks during shift changes.

Administrative control is seamless through a robust cloud-integrated framework. Managers can synchronize the hardware via Wi-Fi or Bluetooth to harvest granular attendance logs and oversee access points in real-time. This level of data precision allows for better-informed workforce planning, automated payroll integration, and enhanced security monitoring across the entire organization.

Key Features

IP65 Waterproof Rating

Robust industrial design ensures reliable operation in rain, dust, and harsh outdoor environments.

AI Anti-Spoofing Tech

Passed liveness detection tests to prevent unauthorized access via photos, videos, or 3D masks.

Global Quality Standards

CE, FCC, and RoHS certified, meeting the highest international safety requirements.

Dual RGB & NIR Cameras

2MP WDR optics provide flawless face recognition in any lighting-from darkness to direct sun.

Xtreme Quad-Core Power

2.2GHz Quad-core ARM processor delivers lightning-fast biometric matching in under 0.3 seconds.

Enterprise Storage

2GB RAM and 16GB eMMC storage ensure smooth performance and massive 100,000 offline record logging.

Multi-Biometric Support

Features a high-capacity sensor for up to 5,000 fingerprints and 3,000 face templates.

HD Capacitive Touch

5" vertical 1080x1920 display with anti-scratch glass for a premium user experience.

Technical Specifications

Display 5-inch Full HD (1080x1920) Capacitive Touchscreen
CPU Processor 2.2GHz Quad core ARM Cortex-A73 & 1.8GHz Dual core A53
Memory 2GB RAM
Storage 16GB
Operating System Android 8.1
Camera 2MP Binocular Dual Camera (RGB + NIR)
Recognition Speed < 0.3 Seconds
Face Capacity 3,000 Faces
Fingerprint Capacity 5000 Fingerprints
Card Capacity 1,000 Users
Record Capacity 100,000 On-device Records
Communication Wi-Fi / Bluetooth
Smart Card Reader Built-in High-Frequency Smart Card Reader
Interface USB, RJ45 Ethernet, Wiegand, Relay, Alarm, Door Bell
Power Supply DC 12V/3A
Operating Temperature -10°C to 50°C
Operating Humidity 20% to 80% (Non-condensing)
Certifications CE, FCC, RoHS. KC

Secure Your Facility with IP65-Rated, All-Weather Face Recognition
